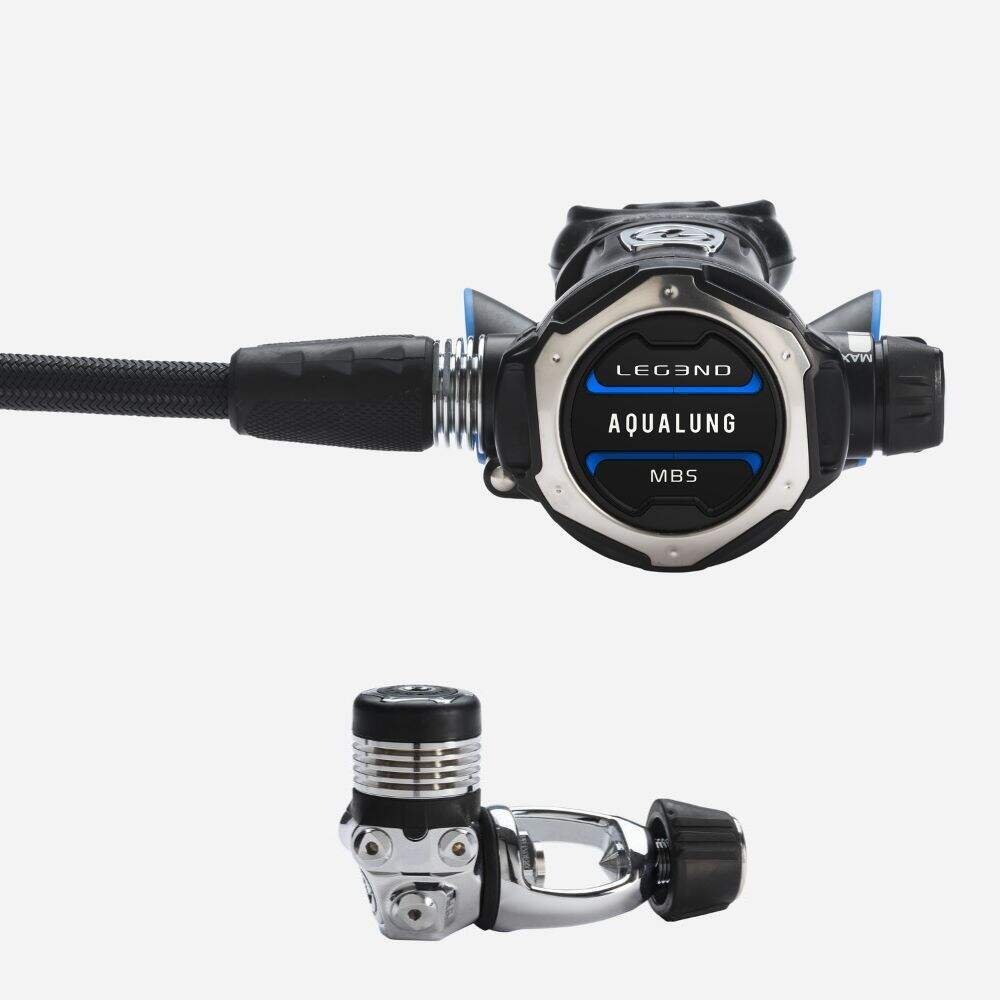

LEG3ND MBS

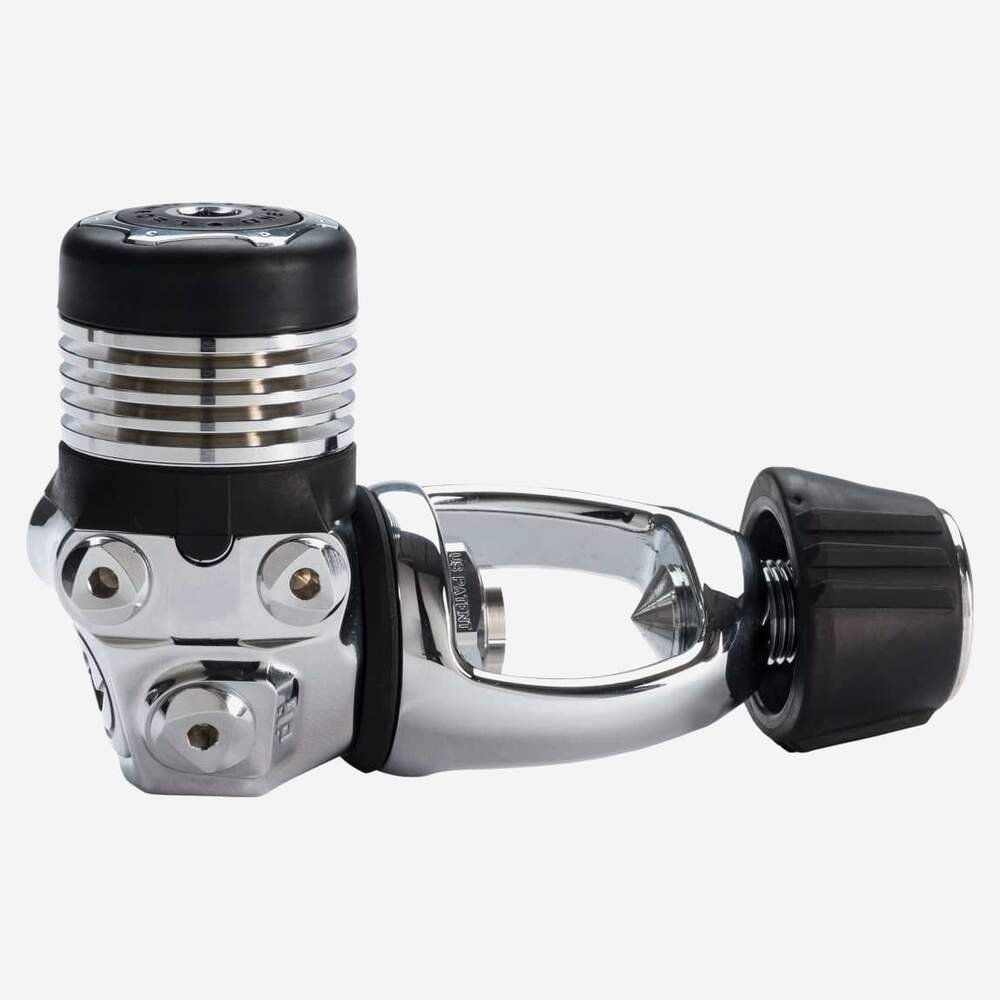

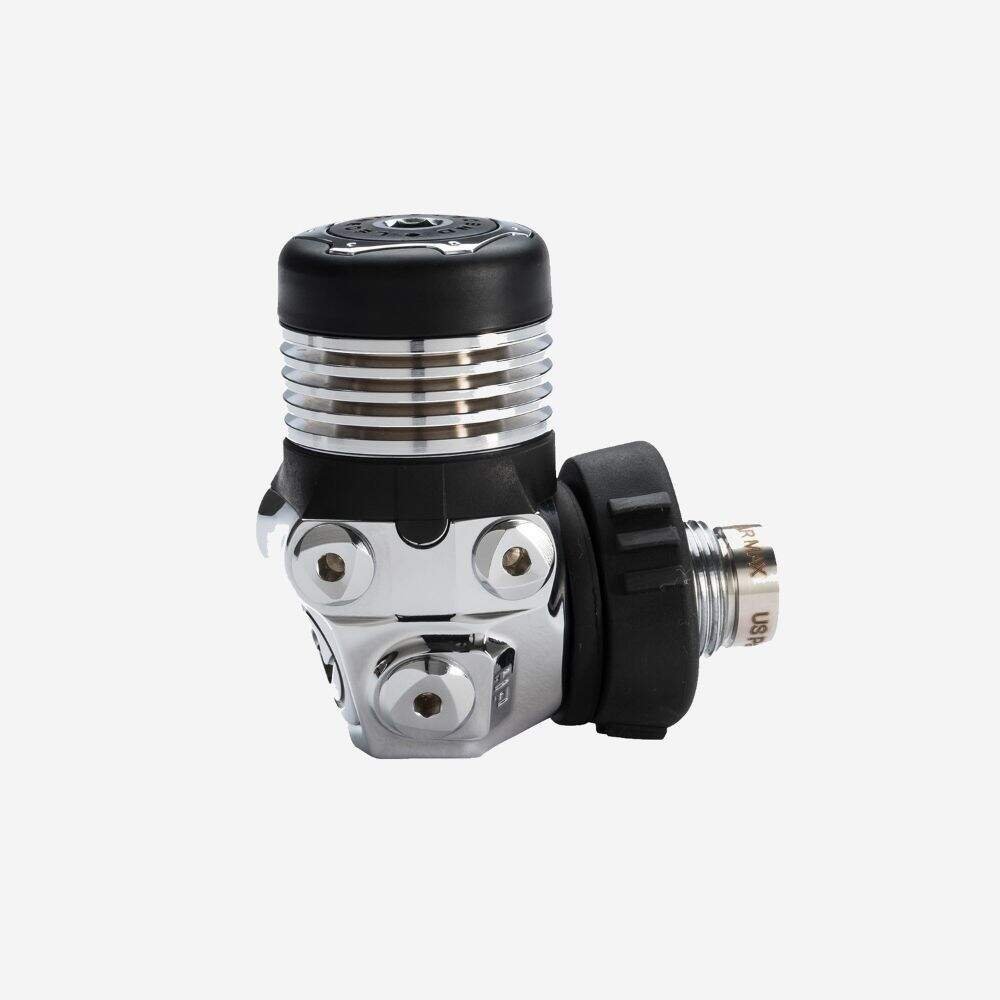

First stage

• Auto Closure Device (ACD): Keeps the inlet closed when not connected to a cylinder valve to protect internal parts from debris and corrosive water, preserve internal lubrication, and maintain oxygen compatibility.
• Permanent Dry Chamber: Isolates internal parts from the outside environment to keep them clean and dry, improving freeze resistance in cold-water diving.
• De-Ice: Deep ribs increase heat exchange area and the overmolded cap delays ice formation on the external diaphragm.
• Over-balanced mechanism: Also called auto-balanced; overcompensates interstage pressure to reduce breathing effort across depths and tank pressures.
• Balanced diaphragm: Provides consistent performance.
• Blue high-pressure seat: Durable sealing seat designed to operate reliably with all gases and compensate for increased air density.
• Dust cap protection: Attached dust cap protects the inlet fitting and ACD from impacts and seals the first stage when off the tank.
• DIN and yoke screws: Ergonomic bi-material "soft grip" screws for improved handling, especially with cold hands; channeled yoke screw prevents water retention.
• HP/MP ports: Positioned for optimal hose routing.

Availability: DIN (4,350 psi / 300 bar max.) and Yoke (3,300 psi / 232 bar max.).

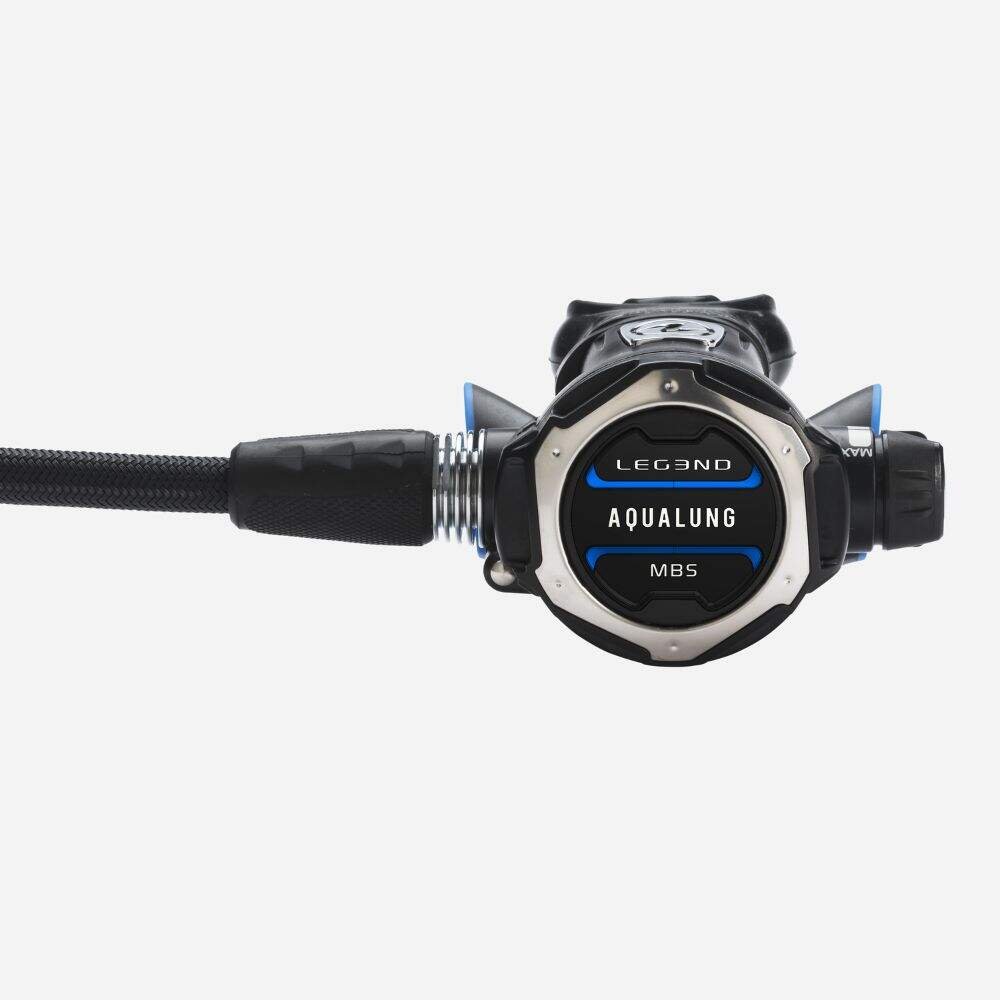

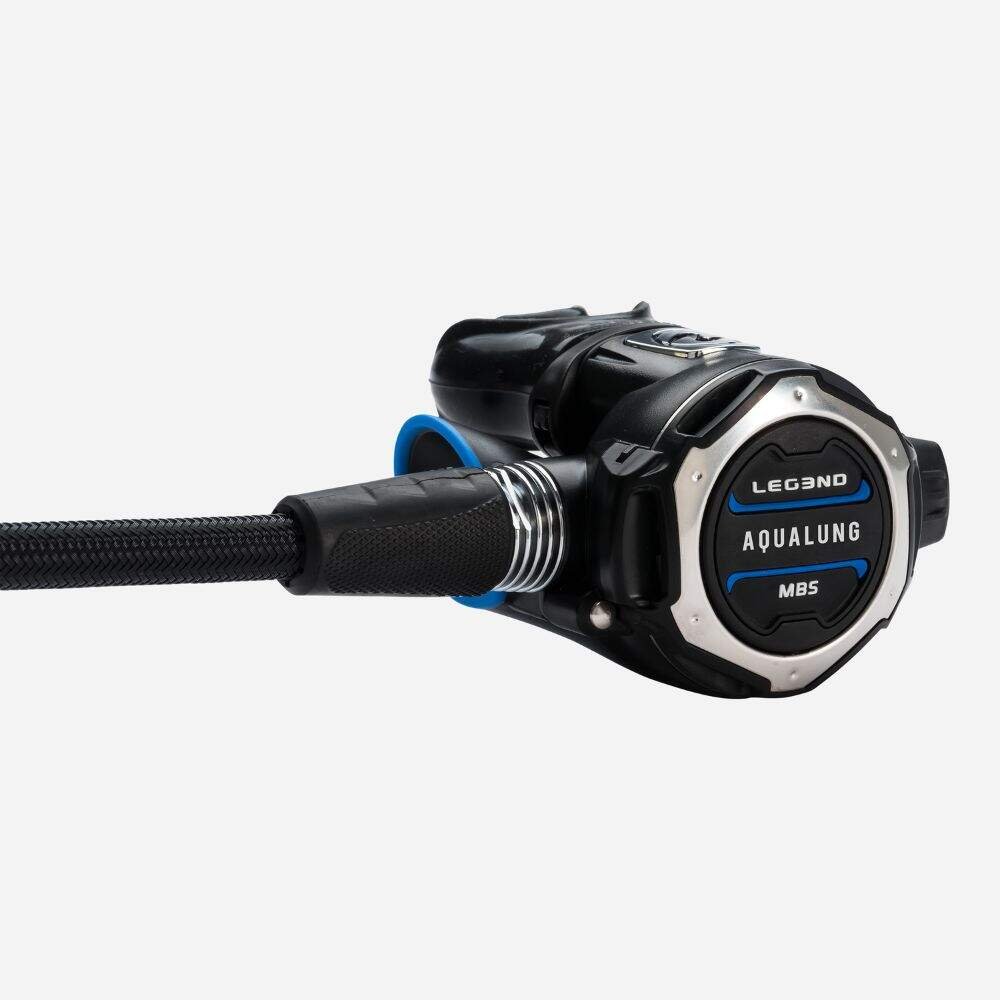

Second stage

• Cover opening channels: Front cover channels let water flow sideways over the diaphragm to reduce freeflows in strong currents and lower cracking effort by approximately 20%.
• Air channel deflector: Streamlined bi-material component that evens airflow and reduces exhalation effort.

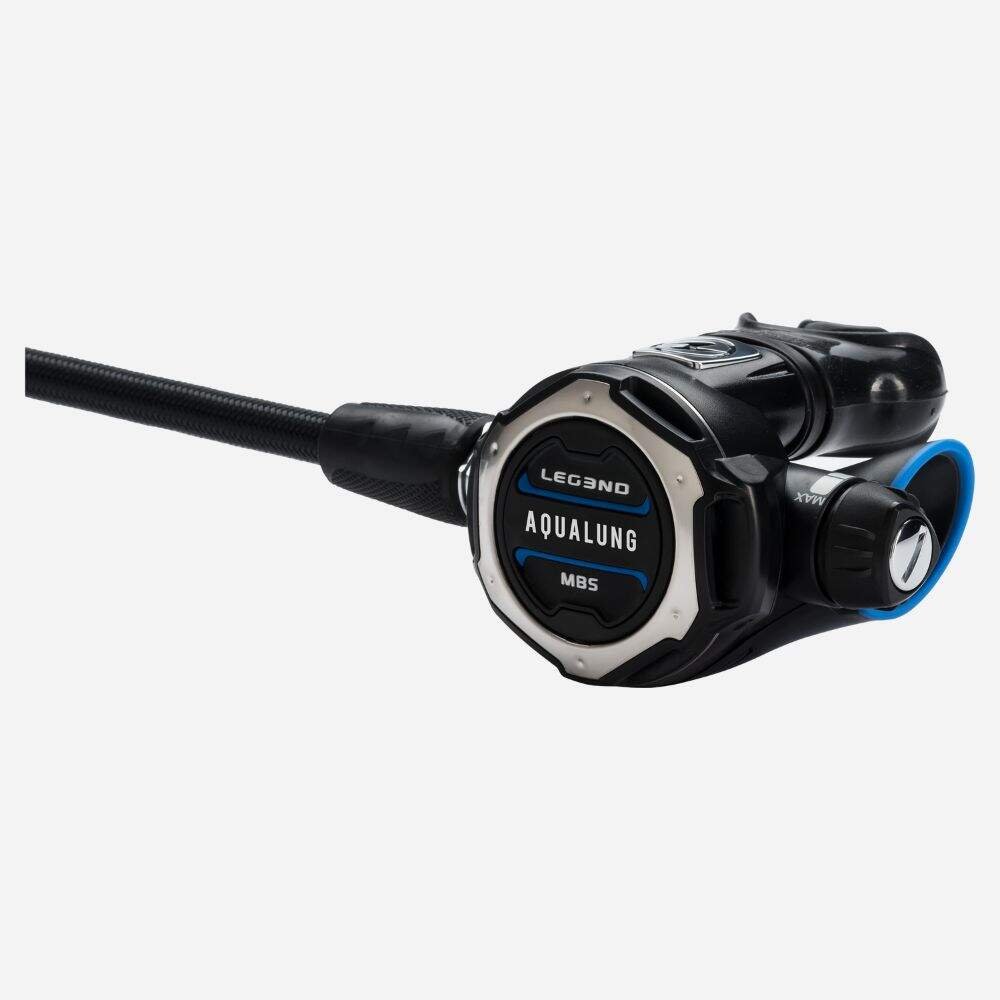

• Venturi adjustment switch: Adjustable lever with overmolded elastomer allows control of airflow; "MIN" reduces valve assistance to help prevent freeflow, "MAX" increases assistance to lower inhalation effort.
• Cracking effort adjustment: Allows fine tuning of breathing performance for different diving conditions.
• Pneumatically balanced: Ensures smooth, easy breathing at all depths.
• Heat exchanger: Helps prevent ice formation on the valve inlet.
• Overmolded air purge: Wide, easy-to-control purge area for simple clearing of the second stage.
• Overmolded exhaust cover: Elastomer "soft touch" cover for protection.
• Durable finish: Stainless-steel parts receive a black Titadur multi-layer treatment; polymer parts are overmolded with black and anthracite tones.

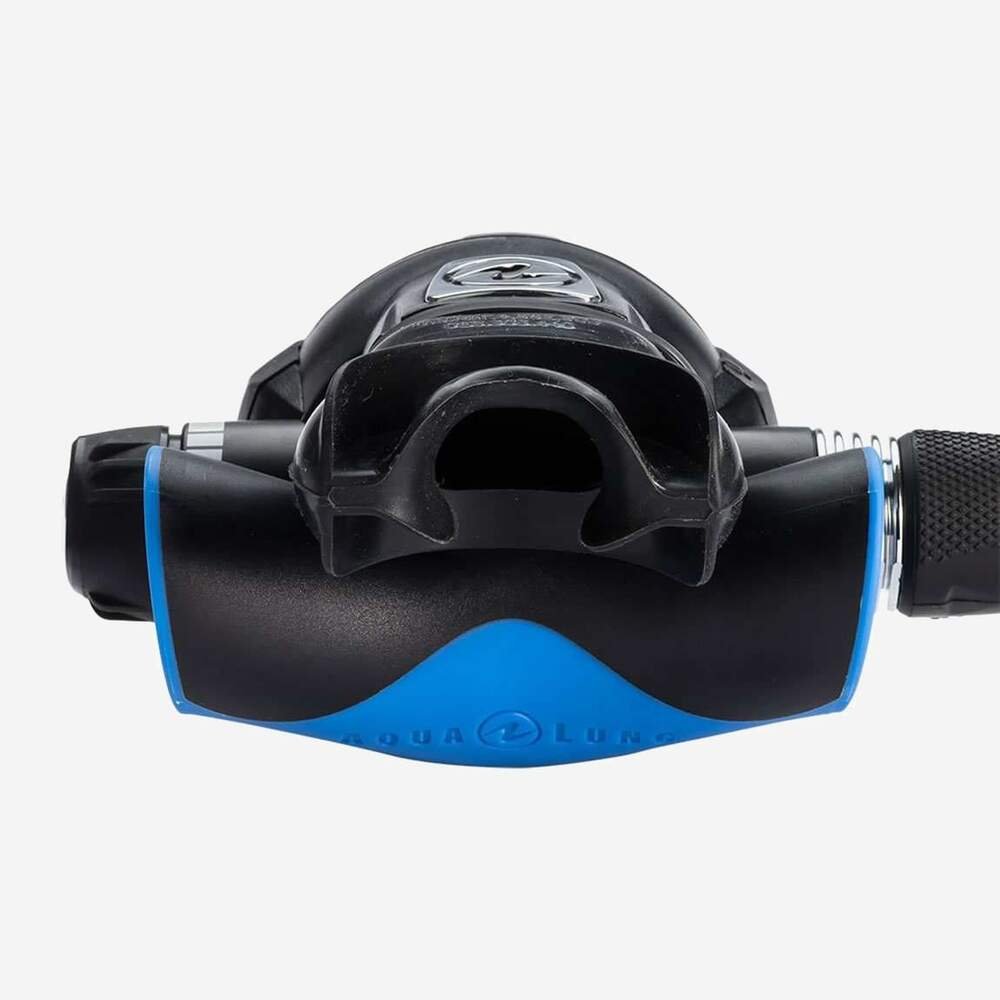

• ComfoBite mouthpiece: Patented palate-bridge design reduces jaw fatigue and secures the second stage; made from hypoallergenic silicone.
• Interchangeable, reusable mouthpiece clip: Tool-free detachable mouthpiece clamp and reusable clip for quick changes and reduced plastic waste.
• Aqua Flex hose: Flexible, lightweight hose with dual protectors.
